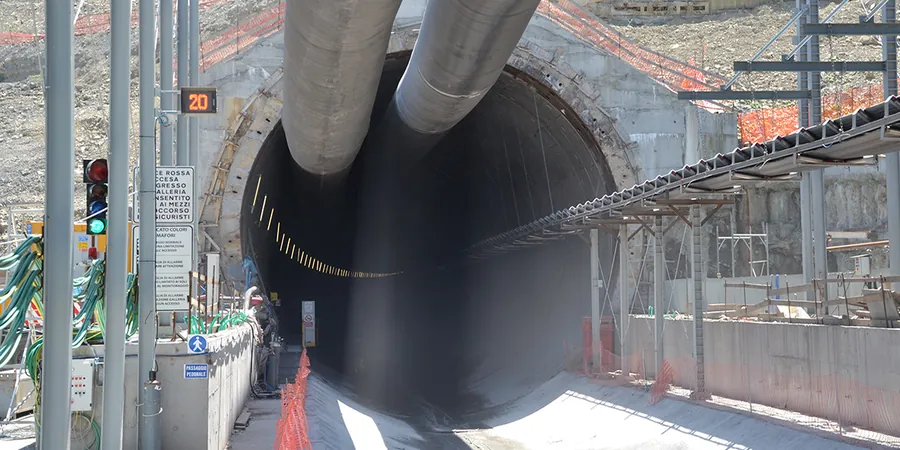

The alluvial valleys and reclaimed harbourside of Porirua present a specific challenge: saturated, compressible soils overlying greywacke at variable depth. The city's coastal flats, shaped by the Porirua Stream and tectonic subsidence along the Ohariu Fault, accumulate recent marine and estuarine sediments. Tunnelling through these deposits without a rigorous geotechnical framework invites face instability and excessive settlement. Our soft-ground-tunnels methodology integrates field vane shear tests, piezocone profiling, and oedometer arrays to build a ground model that captures undrained strength and consolidation behaviour. For an area where the water table sits near the surface and seismic shaking from the Wellington Fault complex is a design driver, the investigation must resolve both static and cyclic performance of the tunnel envelope.
Porirua's soft estuarine clays demand a ground characterisation that captures both undrained strength at the face and the consolidation-driven settlement behind the tail skin.
Methodology and scope
Local considerations
NZS 3404 and the NZGS Tunnel Design Guide explicitly require deformation-controlled analysis when tunnelling through soft ground. In Porirua, the risk magnitude escalates because the soft sediments amplify ground motion: the spectral acceleration at 1.0-second period can exceed 0.6g on Class D sites as defined by NZS 1170.5. Face instability in a TBM drive leads to sinkhole propagation toward the surface, particularly where the cover-to-diameter ratio drops below 2.0. The investigation programme must quantify both short-term undrained behaviour during excavation and the long-term consolidation settlement that can damage surface infrastructure years after construction. A properly scoped campaign of in-situ permeability testing and staged triaxial compression provides the parameters to close the design envelope.
Explanatory video
Applicable standards
NZS 3404:2018, NZS 1170.5:2004 (Seismic Actions), NZGS Soil and Rock Description Guidelines
Associated technical services
Soft Ground Characterisation
Piezocone (CPTu) with pore pressure dissipation, field vane shear, and piston sampling to preserve the in-situ structure of sensitive silts and peats.
Advanced Laboratory Testing
K0-consolidated triaxial (CIU/CAU), constant-volume cyclic simple shear, and incremental loading oedometer tests to define stiffness degradation and compressibility.
Numerical Ground Modelling
Coupled flow-deformation analysis in PLAXIS 2D/3D using Hardening Soil and Soft Soil Creep constitutive models, calibrated to laboratory consolidation curves.
Typical parameters
Frequently asked questions
What is the typical cost range for a tunnel geotechnical investigation in Porirua?
Depending on borehole depth, CPTu coverage, and the laboratory testing programme, investigations range from NZ$6,320 to NZ$25,430. A scope aligned with NZGS guidelines, including consolidation and triaxial testing, will fall in the upper portion of that range.
Which constitutive models are appropriate for Porirua's estuarine silts?
The Soft Soil Creep model captures time-dependent settlement in the organic silts, while the Hardening Soil model with small-strain stiffness overlay works well for the Pleistocene gravels. Calibration requires at least one oedometer test per distinct lithological unit.
How is seismic performance of the tunnel lining evaluated?
Site-specific response analysis extracts shear strain and racking deformation from the free-field motion. The NZTA Bridge Manual and NZS 1170.5 provide the framework; we input G0 and degradation curves from resonant column or MASW data to define the ground's nonlinear behaviour.
